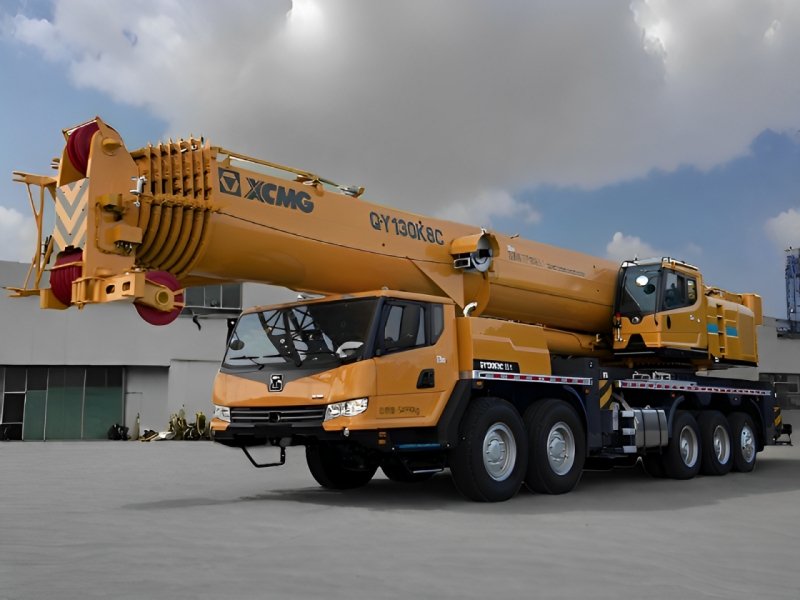

Product Characteristics
Extra-long arm length, excellent performance:
eight-section “U-shaped” 88m main arm, maximum lifting capacity of 130 tons, 34.5m auxiliary arm, maximum arm length of up to 116.6m, lifting height and operating range leading the industry.
Strong load-bearing capacity and high stability:
H-shaped outriggers, 8.1m horizontal span, full rectangular frame structure, stronger load-bearing capacity and higher stability.
Economic and energy-saving, durable and reliable:
Incorporating the core technology of dual-engine power technology and new energy-saving hydraulic system, easy maintenance, intelligent and efficient operation.
Low operating cost, high efficiency:
Short-distance transfer can carry 27t counterweight and all outrigger pads, meet 50% of working conditions, and save 1 flatbed truck for shipping.
Product Parameters
| Engine rated power kw/(r/min） | 338/1900 |
| Maximum driving speed (km/h) | 80 |
| Maximum climbing grade (％) | 45 |
| Maximum rated total lifting weight(t) | 130 |
| Longest main boom(m) | 86 |
